Application :
- Universal low power IoT sensor hub.
- Home automation.
- Universal low power IoT recorder.
- Mesh network.
- Video streaming of the camera.
- Industrial wireless control.
- OTT TV box / set-top box device.
- Baby monitor.
- Smart Socket.
- Sensor networks.
- Wi-Fi toys: Counters, toys, Anti-lost device.
- Wearable electronic products.
- Wi-Fi speech recognition device.
- Wi-Fi location-aware devices.
Features :
- Integrated 520 KB SRAM.
- Hybrid Wi-FI & Bluetooth.
- High level of integration.
- Ultra-low-power management.
- 4 MB Flash.
- On-board PCB antenna.
- RF Performance: Standard RF performance
- Version: Older version
Package Includes :

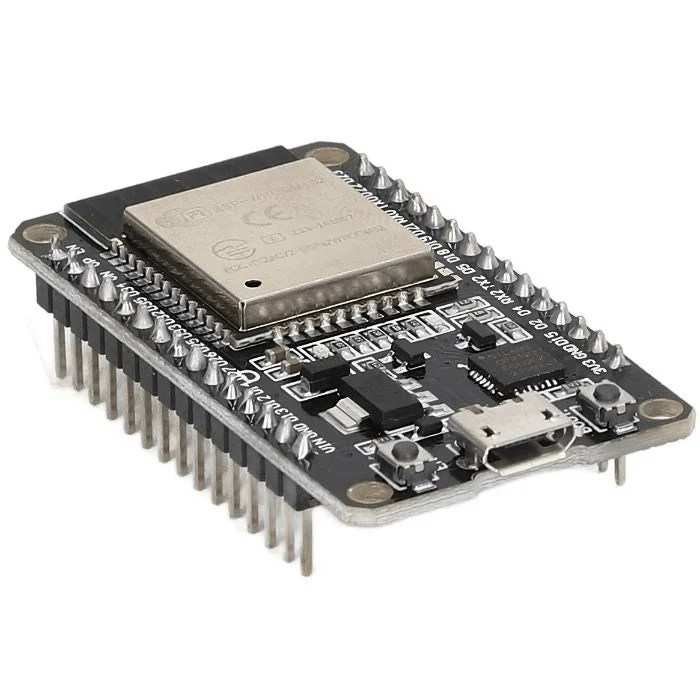

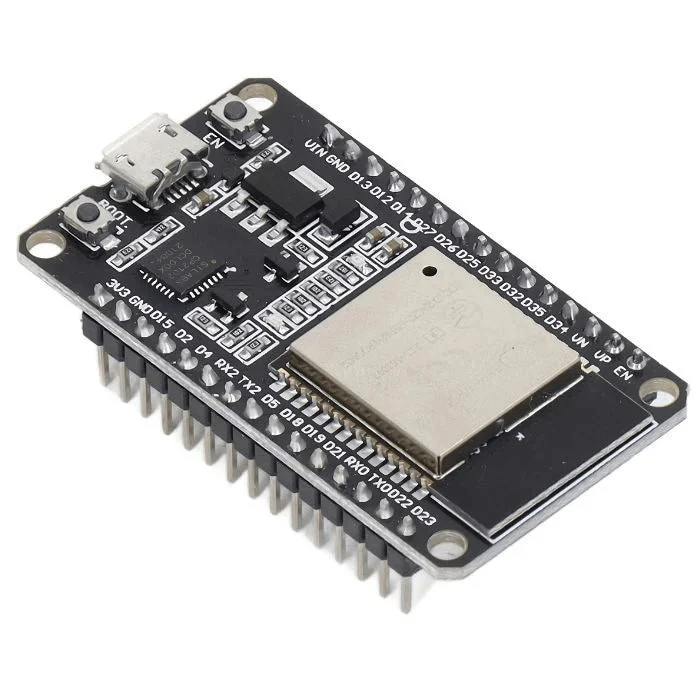

1 x ESP WROOM 32 MCU Module.
| Based On: | ESP32 Based, WROOM Type |
|---|---|
| Flash Memory (MB): | 4MB |
| Operating Voltage (VDC): | 2.3 ~ 3.6 |
| Operating Current (mA): | 80 |
| Clock Frequency (MHz) | 80 to 240 |
| Data Rate (Mbps) | 54 |
| SRAM Memory (KB) | 512 |
| Length (mm): | 49.5 |
| Width (mm): | 26.5 |
| Height (mm): | 11.5 |
| Weight (g): | 10 |
| Antenna Type: | PCB antenna |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 3.5 × 7 × 2 cm |
